ESS - Ballistic Glasses ICE 3LS - 740-0019
ICE™ (Interchangeable Component Eyeshield) is a lightweight, frameless design that offers full ballistic protection. In addition, it provides an unrestricted field of view, a first-class optical viewfinder and adjustable temples. The modular design gives you the ability to interchange any component of the eyewear, and also allows you to attach a corrective insert.
All ICE™ series visors provide 100% UVA/UVB protection. While their durability exceeds the ANSI Z87.1-2015 standard. In addition, the goggles have passed the MIL-PRF-31013 ballistic testing with .15 caliber. The goggles tucked into a nylon case will easily fit into any backpack.
Features:
- Modular design
- Ability to replace any eyepiece component
- Distortion-free viewfinder
- UVA and UVB protection
- ToughZone™ technology to protect the visor from scratches
- Unlimited field of view
- Easy and quick replacement of the visor

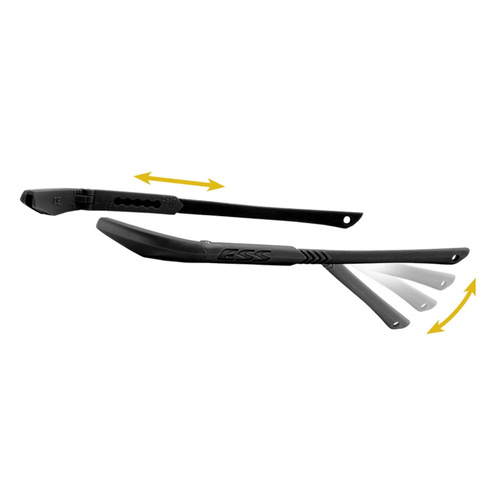

- Flexible temples with PosiLock™ technology
- Superior comfort and no pressure points
- Comfortable, replaceable composite-silicone nose pad
- Elastic strap to keep glasses from getting lost
- U-RX™, P-2B™ and Vice™ corrective inserts available
- Nylon case included
ESS Eyewear VIEWS & SIZES CHARACTERISTICS.
We invite you to read the Card of visors and sizes of ESS eyeglasses presenting information on:
- the value of the visible light transmission coefficient (VLT) for all models of the company's visors
- information about the impact resistance of ESS glasses
- dimensions of frames of all models of ESS glasses
- information about completing sets of ESS eyeglasses Series - One, 3LS, 2X
| Technical data | |
|---|---|
| Viewfinder material | Polycarbonate |
| Visor thickness | 2.4 mm |
| Viewfinder color | Transparent, visible light transmission: 90% Yellow, visible light transmission: 85% Tinted, visible light transmission: 15% |
| Earpiece color | Black |
| Visor dimensions | Length: 147 mm Width at widest point: 48.1 mm Width at nose piece mounting point: 19.5 mm |
| Spacing of side mounting holes | 114.4 / 130.5 mm |
| Earpiece dimensions | Width at hinge point: 152 mm Thickness of temples: 2.5 - 5 mm |
| Weight of complete glasses | 30g |
| Weight of the viewfinder | 19g |
| Nose piece weight | 3g |
| Weight of temples | 8g |
| Filters | 100% UVA/UVB |
| NSN | 4240-01-545-7922 |
Standards:
- Complies with American civilian standard ANSI Z87.1 - 2015
- Complies with U.S. Army MIL SPEC MIL-PRF-31013 (Clause 3.5.1.1).
- CE quality mark, complies with European standards EN 166:2001, EN 170 and EN 172
- Frames conform to European CE EN 166 FT standard
- Transparent and yellow visor complying with European standard CE 2-2.1 FT K N
- Tinted visor complying with European standard CE 5-3.1 FT K N
- Complies with US Federal OSHA
Kit components:
- ICE™ earmuffs

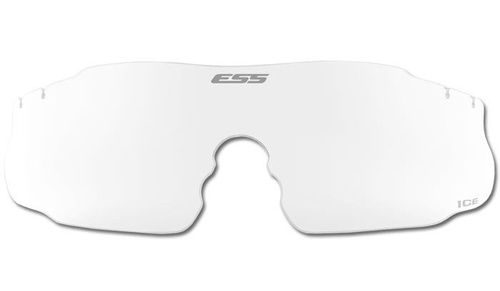

- Clear transparent visor

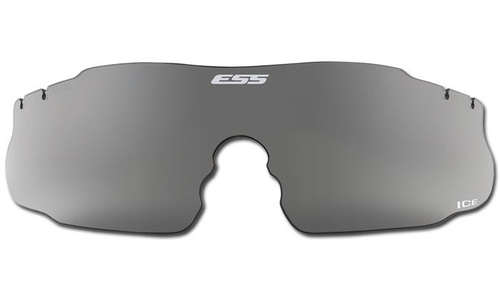

- Smoke Gray tinted viewfinder

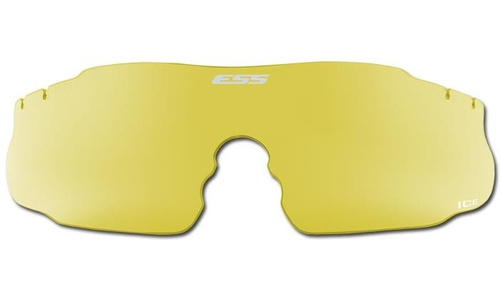

- High contrast Hi-Def Yellow viewfinder
- No Fog microfiber cloth for cleaning glasses
- Elastic neck strap
- Zippered nylon case
